MHP - Core System

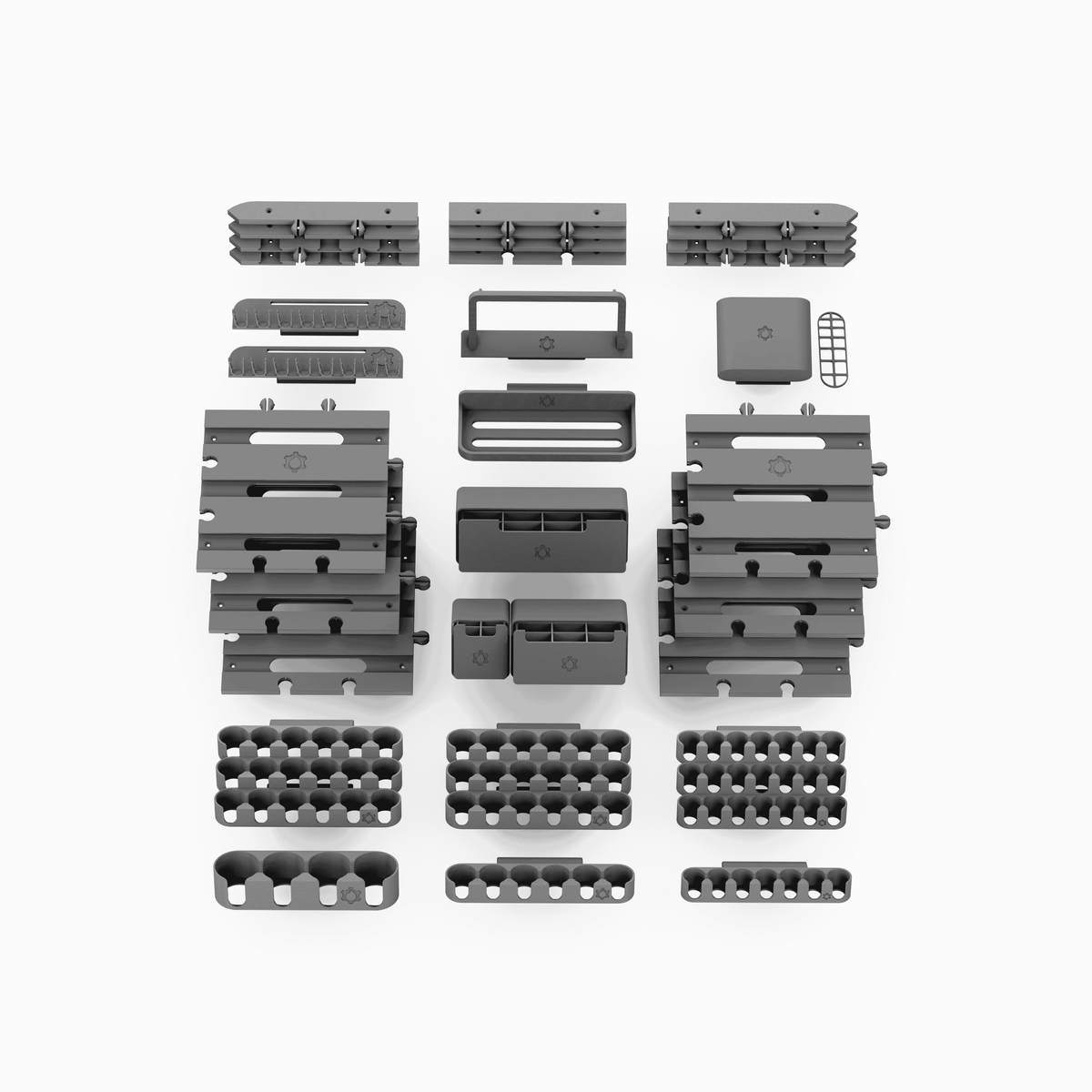

This is the whole system. The base plate, every paint rack, the shelf, brush holder, oil hanger, tool hanger and the full drawer set. Print what you need, when you need it, and slide it onto your wall. Built by a painter, for painters.

What is in the download

• Back Rail Plate:
  • Size: 248 x 248 x 10mm
  • Filament: 174g
  • Print Time: 4h 57m
• Single Row Paint Rack 26mm:
  • Size: 199 x 49 x 50mm
  • Filament: 57g
  • Print Time: 2h 34m
• Single Row Paint Rack 33mm:
  • Size: 219 x 49 x 57mm
  • Filament: 62g
  • Print Time: 2h 58m
• Single Row Paint Rack 36mm:
  • Size: 237 x 51 x 60mm
  • Filament: 70g
  • Print Time: 3h 14m
• Single Row Paint Rack 50mm:
  • Size: 213 x 69 x 78mm
  • Filament: 94g
  • Print Time: 3h 57m
• Multi Row Paint Rack 26mm:
  • Size: 199 x 126 x 58mm
  • Filament: 157g
  • Print Time: 7h 11m
• Multi Row Paint Rack 33mm:
  • Size: 219 x 126 x 87mm
  • Filament: 195g
  • Print Time: 8h 46m
• Multi Row Paint Rack 36mm:
  • Size: 237 x 127 x 98mm
  • Filament: 215g
  • Print Time: 9h 27m
• Shelf:
  • Size: 220 x 98 x 35mm
  • Filament: 85g
  • Print Time: 3h 02m
• Brush Holder:
  • Size: 120 x 71 x 100mm
  • Filament: 48g
  • Print Time: 1h 37m
• Oil Paint Hanger:
  • Size: 220 x 48 x 35mm
  • Filament: 45g
  • Print Time: 2h 01m
• Tool Hanger:
  • Size: 200 x 85 x 15mm
  • Filament: 16g
  • Print Time: 0h 40m
• Storage Drawer 1x1:
  • Size: 70 x 81 x 75mm
  • Filament: 28g
  • Print Time: 1h 07m
• Storage Drawer 1x2:
  • Size: 140 x 81 x 75mm
  • Filament: 47g
  • Print Time: 1h 42m
• Storage Drawer 1x3:
  • Size: 210 x 81 x 75mm
  • Filament: 66g
  • Print Time: 2h 21m

Racks are sized by bottle diameter, so measure across the widest point of your bottle and pick the nearest size. There is no multi row rack at 50mm.

This is every file in the range today. Modules released after this pack are sold separately.

Mounting
The Back Rail Plate fixes to the wall with screws, so you will need to drill. Heavy-duty tape will hold a light load, but for anything carrying paints or tools I recommend screws. Once the plate is up, every module slides straight onto the rails.

Printer
The plate and the racks need a bed of at least 256 x 256mm, so a Bambu A1, P1S or similar. They do not fit an A1 Mini. The brush holder and the 1x1 and 1x2 drawers fit smaller beds.

Print settings
Times and weights above are from a Bambu A1, 0.4mm nozzle, 0.2mm layer, 15% infill, default speed. Yours will vary with your printer, filament and profile.

Licence
These files are for your own personal, non-commercial use.

The Back Rail Plate is included, and it is the base file for all modules.
